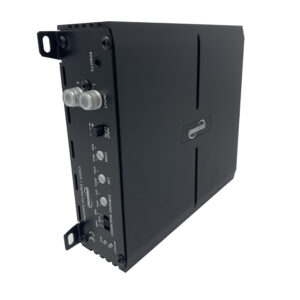

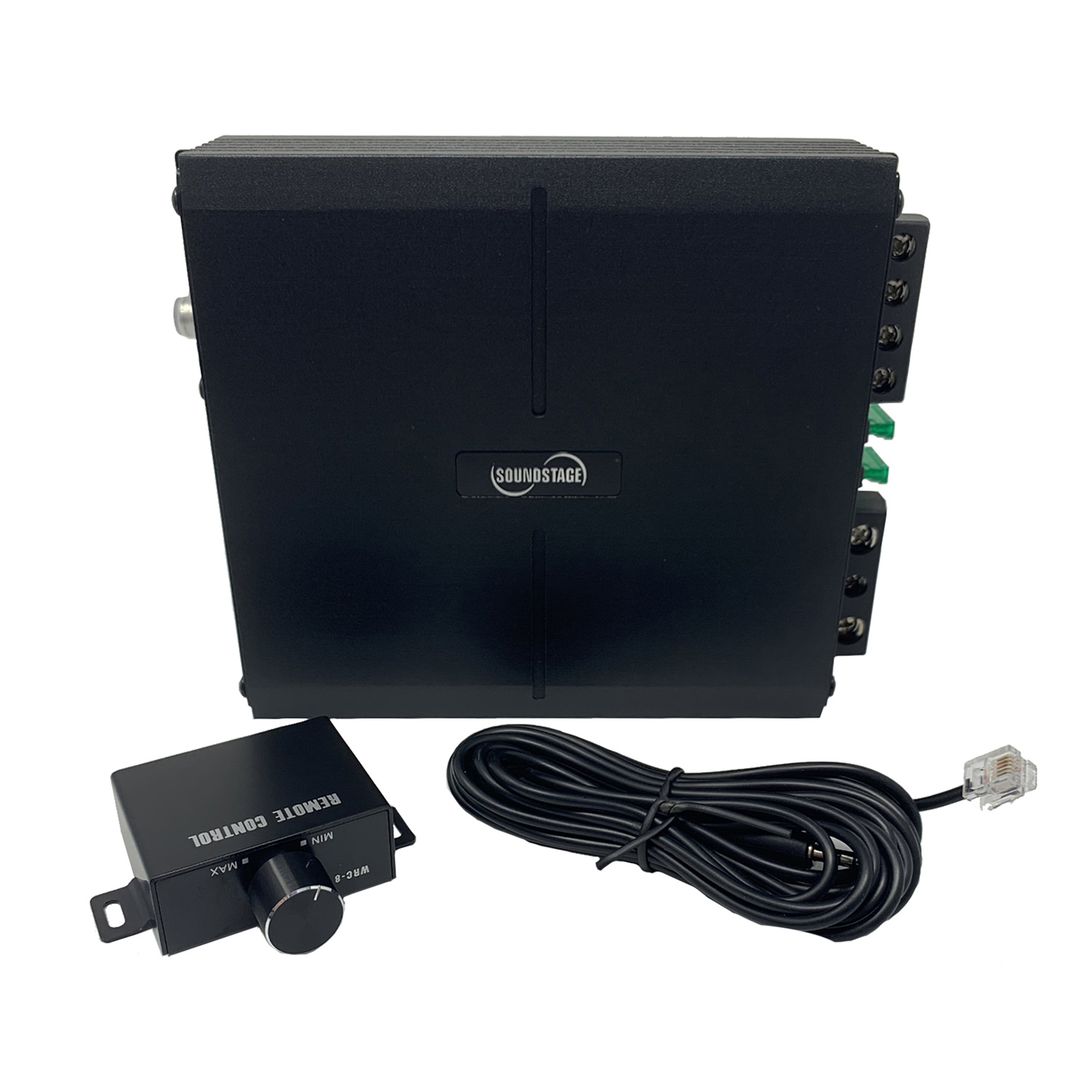

Soundstage CS600.1 Champion Series Mono Amplifier with a Low Pass Frequency of 40Hz ~ 220Hz and Rated Power at 2 Ohms is 530 Watts.
| Technical Specifications | |
| Input Sensitivity | Pre Input: 0.35 ~ 3.5V / SPK Input 0.7 ~ 7V |
| Freq. Response | 10Hz ~ 220Hz |
| S/N Ratio | >101dB |
| Low Pass Freq. | 40Hz ~ 220Hz |
| SubSonic Freq. | 10Hz ~ 50Hz |
| Filter Slope | 24dB/Oct |
| Bass Boost Level | 0dB-6dB-12dB |
| Optional Remote | Yes |
| Distortion | <0.3% |
| Rated Power @ 4 Ohm | 1 x 350W |
| Rated Power @ 2 Ohm | 1 x 530W |
| Peak Power | 1 x 1060W |
| Minimum Load | 2 Ohm |
| Supply Voltage | 7.5V ~ 16V DC |
| Dimensions (mm) | 185 x 150 x 46 |
